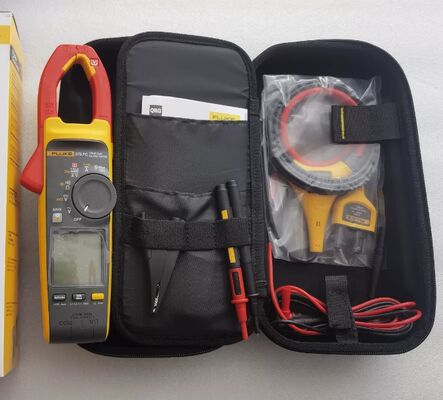

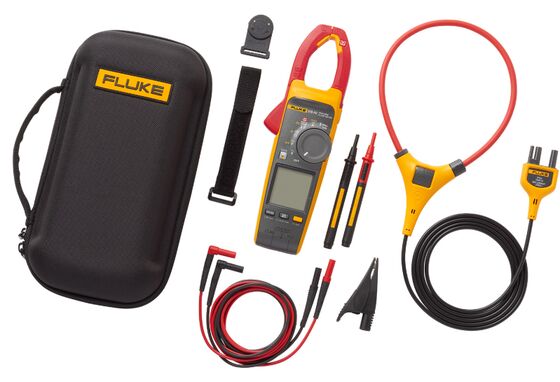

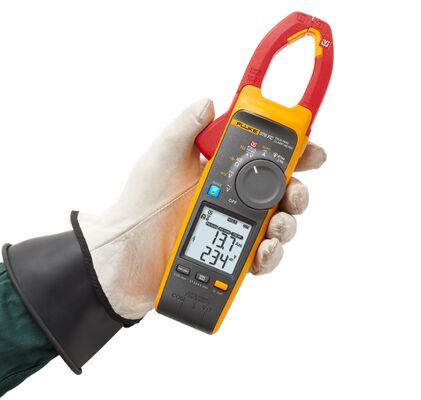

Fluke 378FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex Probe

  • Fluke 378FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex Probe
  • Fluke 378FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex Probe
  • Fluke 378FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex Probe
  • Fluke 378FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex Probe
  • Fluke 378FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex Probe
  • Fluke 378FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex Probe
  • Fluke 378FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex Probe
  • Fluke 378FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex Probe
Τόπος καταγωγής ΗΠΑ
Μάρκα FLUKE
Αριθμό μοντέλου 378FC
Ποσότητα παραγγελίας min 2
Τιμή USD＄620
Συσκευασία λεπτομέρειες Αρχική συσκευασία
Χρόνος παράδοσης σε απόθεμα
Όροι πληρωμής L/C, D/A, D/P, T/T, Western Union
Δυνατότητα προσφοράς 20PC
Λεπτομέρειες
Επισημαίνω

Fluke 378FC clamp meter

,

Non-contact voltage tester

,

True-rms AC/DC meter
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων

Specifications: Fluke 378 FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex

General specifications
General Maximum Voltage between any Terminal and Earth Ground 1000 V
Battery Type 2 AA IEC LR6 alkaline
Life 200 hour
Display Dual readout
Automatic Power Off 20 minutes
Electrical
AC Current: Jaw
Range 999.9 A
Resolution 0.1 A
Accuracy 2 % ±5 digits (45 Hz to 66 Hz)
Crest Factor (50/60 Hz) 3 @ 500 A
2.5 @ 600 A
1.42 @ 1000 A
Add 2 % for C.F. >2
AC Current: Flexible Current Probe
Range 2500 A
Resolution 1 A (≤2500 A) 0.1 A (≤999.9 A)
Accuracy 3 % ±5 digits (5 Hz to 500 Hz)
Crest Factor (50/60Hz) 3.0 at 1100 A
2.5 at 1400 A
1.42 at 2500 A
Add 2 % for C.F. >2
Position Sensitivity
Fluke 378FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex Probe 0 Distance from Optimum i2500-10 Flex i2500-18 Flex Error
A 0.5 in (12.7 mm) 1.4 in (35.6 mm) ± 0.5 %
B 0.8 in (20.3 mm) 2.0 in (50.8 mm) ± 1.0 %
C 1.4 in (35.6 mm) 2.5 in (63.5 mm) ± 2.0 %
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range 999.9 A
Resolution 0.1 A
Accuracy 2 % ±10 digits1
[1]When using the ZERO function to compensate for offsets
AC Voltage: Field Sense
Range 1000 V
Resolution 1 V (≤1000V)
Accuracy ≤4/0 AWG 3 % ±5 digits (45 Hz to 66 Hz)
≥4/0 AWG 5 % ±5 digits (45 Hz to 66 Hz)
Position wire as close as possible to jaw opening (see illustration).Fluke 378FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex Probe 1
AC Voltage: Test Leads
Range 600.0 V 1000 V
Resolution 0.1 V (≤600.0 V)
1 V (≤1000 V)
Accuracy 1 % ±5 digits (20 Hz to 500 Hz)
DC Voltage
Range 600.0 V
1000 V
Resolution 0.1 V (≤600.0 V)
1 V (≤1000 V)
Accuracy 1 % ±10 digits
mV dc
Range 500.0 mV
Resolution 0.1 mV
Accuracy 1 % ±5 digits
Amps Frequency: Jaw
Range 45 Hz to 66 Hz
Resolution 0.1 Hz
Accuracy 0.5 % ±5 digits
Trigger Level 5 Hz to 10 Hz, ≥10 A
10 Hz to 100 Hz, ≥ 5 A
100 Hz to 500 Hz, ≥ 10 A
Amps Frequency: Flexible Current Probe
Range 5.0 Hz to 500.0 Hz
Resolution 0.1 Hz
Accuracy 0.5 % ±5 digits
Trigger Level 5 Hz to 20 Hz, ≥25 A
20 Hz to 100 Hz, ≥20 A
100 Hz to 500 Hz,≥25 A
Resistance
Range 60.00 kΩ
6000 Ω
600.0 Ω
Resolution 0.1 Ω (≤600.0 Ω)
1 Ω (≤6000 Ω)
10 Ω (≤60.00 kΩ)
Accuracy 1 % ±5 digits
Capacitance
Range 1000 μF
Resolution 0.1 μF (≤100.0 μF)
1 μF (≤1000 μF)
Accuracy 1 % ±4 digits
Mechanical
Size (L x W x H) 274 mm x 86 mm x 47 mm
Weight (with Batteries) 463 g
Jaw Opening 34 mm
Flexible Current Probe Diameter 7.5 mm
Flexible Current Probe Cable Length (head to electronics connector) 1.8 m
Rogowski Coil Length 450 mm
Environmental
Operating Temperature -10 °C to 50 °C
Storage Temperature -40 °C to 60 °C
Operating Humidity (without condensation) Non condensing (<10 °C)
≤90 % RH (10 °C to 30 °C)
≤75 % RH (30 °C to 40 °C)
≤45 % RH (40 °C to 50 °C)
Temperature Coefficients Add 0.1 x specified accuracy for each degree C >28 °C or <18 °C
Ingress Protection IEC 60529: IP30 (jaw closed)
Operating Altitude 2000 m
Storage Altitude 12 000 m
Electromagnetic Compatibility (EMC)
International IEC 61326-1: Portable Electromagnetic Environment
IEC 61326-2-2, CISPR 11: Group 1, Class B
Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object.
Korea (KCC) Class A equipment (Industrial Broadcast & Communications Equipment)
Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Safety
General IEC 61010-1: Pollution degree 2
Measurement IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V
IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V
Current Clamp for Leakage Current Measurements IEC 61557-13: Class 2, ≤30 A/m
